Quabbin Multipair Roadway Loop – 20 AWG, 3 pair, unshielded with shielded pairs, HDPE, Black

Part Number
6170
Jacket Color
Black
Colors shown are a representation only. If you require color matching please contact us direct.
Please enter your information to download the specifications sheet.

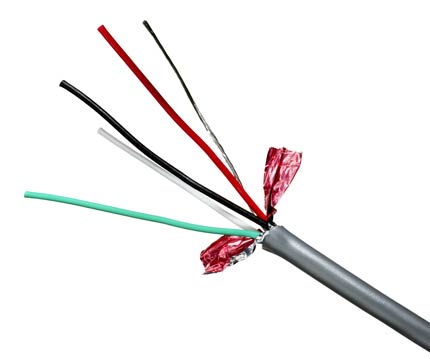

Representative image for Quabbin part number 6170

Representative image, may not match color or exact configuration of product.

Construction Details

AWG
20
Solid/Stranded
Stranded
Stranded Copper
10/30
Pair Count
3
Insulation
Polypropylene, .013"
Shield
No
Jacket Type
HDPE
Jacket Color
Black
Colors shown are a representation only. If you require color matching please contact us direct.
Overall Diameter
.337"
Other Details
Drain
Shielded Pairs

Ratings and Approvals

RoHS Compliant
Colors shown are a representation only. If you require color matching please contact us direct.

Physical Properties

Temp Max.
60
Voltage Rating Max.
350
